The most efficient Linutop Pc.
Energy saving : 14W
Small weight and size : 936g (1 lb)
Robust : use 24h/7d
Ready-to-use : Optimized software on flash
For advanced use :
Internet Kiosk, Digital signage, Desktop,
Thin client, VNC, RDP,...
Specifications
| Software |
Linutop OS and applications pre-loaded on flash (700MB)
Try Linutop OS on your PC now! |
| Processor |
Intel ATOM N270 1.6 GHz Fanless (x86)
|
| RAM |
1GB expandable up to 2GB DDR2
|
| Storage |
2 GB Flash Memory (Internal)
|
|
| Network |
Giga Lan Ethernet (RJ-45)
|
| PXE Boot |
Thin client use
|
| Video |
VGA + DVI Output - GMA950
Resolution 1920x1440 max
3D Graphic Acceleration
|
| Audio |
1 In & 2 Out 3mm
|
| Extensions |
5x USB 2.0 ports
|
| internal |
2 Sata / 1 Bay 2,5'', 1 PCIe, 2 COM ports
|
| Size |
18.2 x 20.1 x 3.6 cm (7.1x7.9x1.4 in)
|
| Weight |
936g (2 lb)
|
| Power |
12V 3,3A
AC adapter 110-240V~ 50/60Hz
|
| Consumption |
< 14W
|
| Miscs |
Strong metal case
Monitor mounting bracket (in option)
|
| Warranty |
1 year (expandable up to 3 years)
|
Read more:
 Data Sheet
Quick User Guide
|
Front
Back
Processing power ATOM - 1.6 GHz

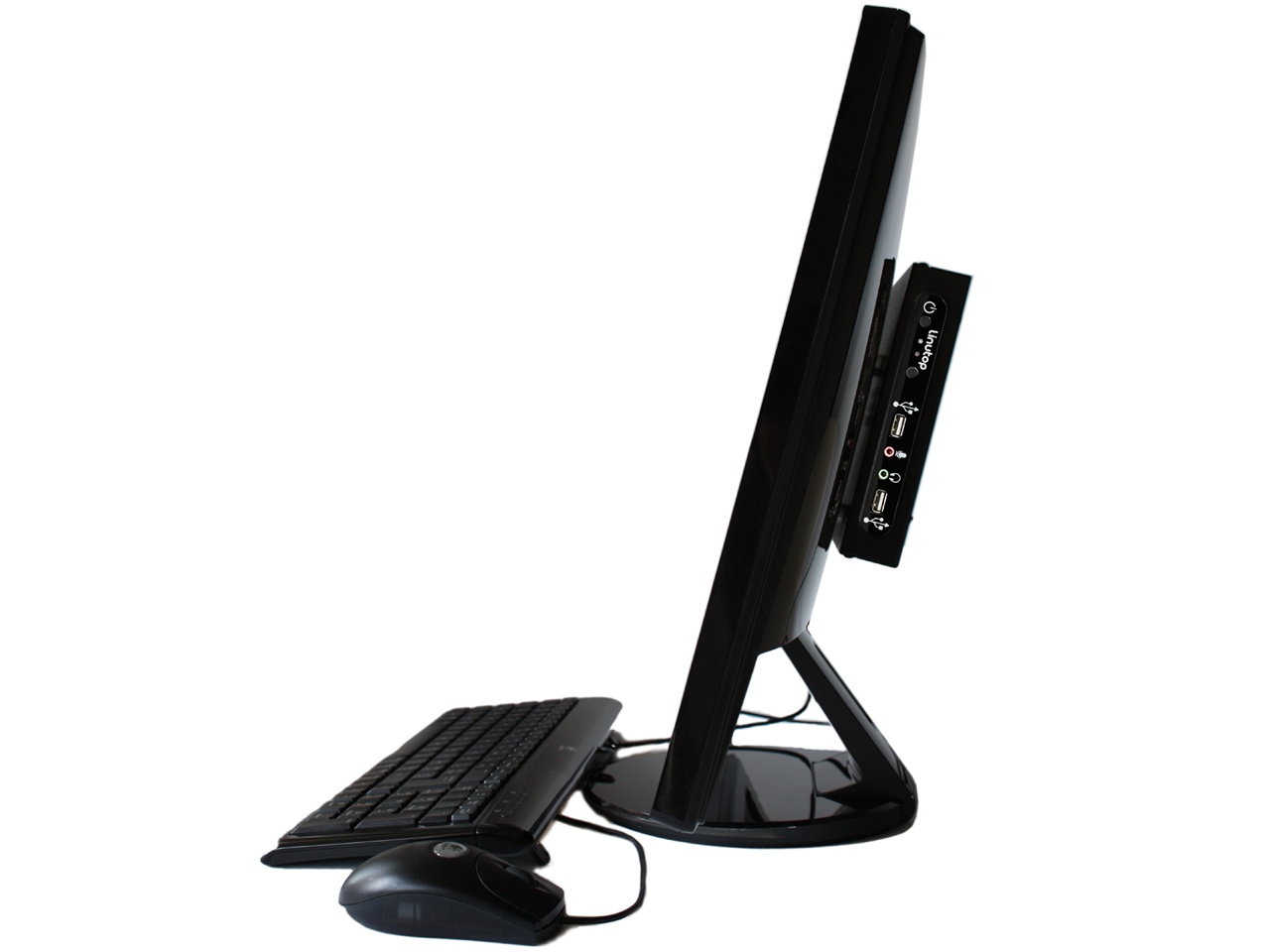

Linutop placed on the back of a flat panel,
with the monitor mounting bracket accessory.
Linutop 4 is replaced by Linutop 5
|
